Catchment Hydraulics - calculating run-off

To calculate the correct size of trench drain, catchment run-off must be calculated.

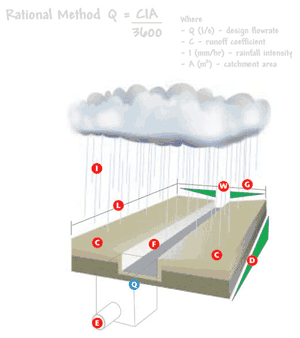

	Catchment area - length x width of pavement	x
	Rainfall intensity in mm per hour
	Run-off coefficient - ie. pavement material, some surfaces absorb liquids e.g. block pavers

Refer to 'Australian Rainfall and Run-off' or AS/NZS 3500.3 - 'Plumbing and Drainage Code' for rainfall intensities.

Other factors that affect the transfer of liquids include:

	Ground fall along trench %
	Position and size of outlet pipe
	Surface roughness of trench material. Manning's coefficient of roughness
	Pavement angle of approach to trench - this can affect grate hydraulics (steep slopes may cause bypass)

Determining trench size

The calculated run-off

, is combined with the other factors above to determine the correct size of trench. The trench size is specified by the clear opening and invert depth - changing either or both of these will create a smaller or larger ‘flow area’.

	Clear opening of trench is the normal specified dimension, e.g., 100mm, 200mm, etc.
	Overall grate and outside trench dimensions are misleading.
